[TiDB Community Upgrade Assistance Materials] The Most Comprehensive TiDB Version Upgrade Material Package

Translated
1

Note:
This topic has been translated from a Chinese forum by GPT and might contain errors.

Original topic: 【TiDB 社区升级互助材料】TiDB 版本升级最全材料包

| username: Billmay表妹

1. Upgrade Version Selection

  1. Recommended Versions Release Notes

TiDB 7.5.1 Release Notes: TiDB 7.5.1 Release Notes | PingCAP 文档中心

TiDB 7.1.5 Release Notes: TiDB 7.1.5 Release Notes | PingCAP 文档中心

TiDB 6.5.9 Release Notes: TiDB 6.5.9 Release Notes | PingCAP 文档中心

  1. Recommended Version Feature Interpretation

Main differences between TiDB 6.X and 7.X versions: 7.X versions have Resource Control functionality.

7.5.x Related Feature Interpretation

7.1.x Related Feature Interpretation

6.5.x Related Feature Interpretation

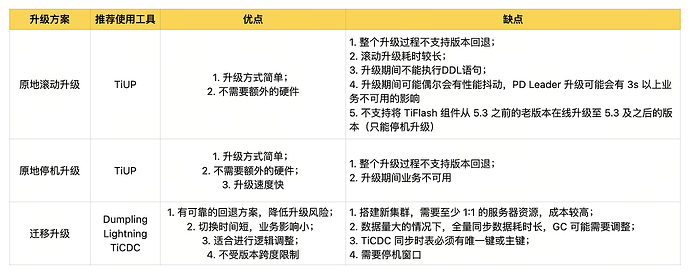

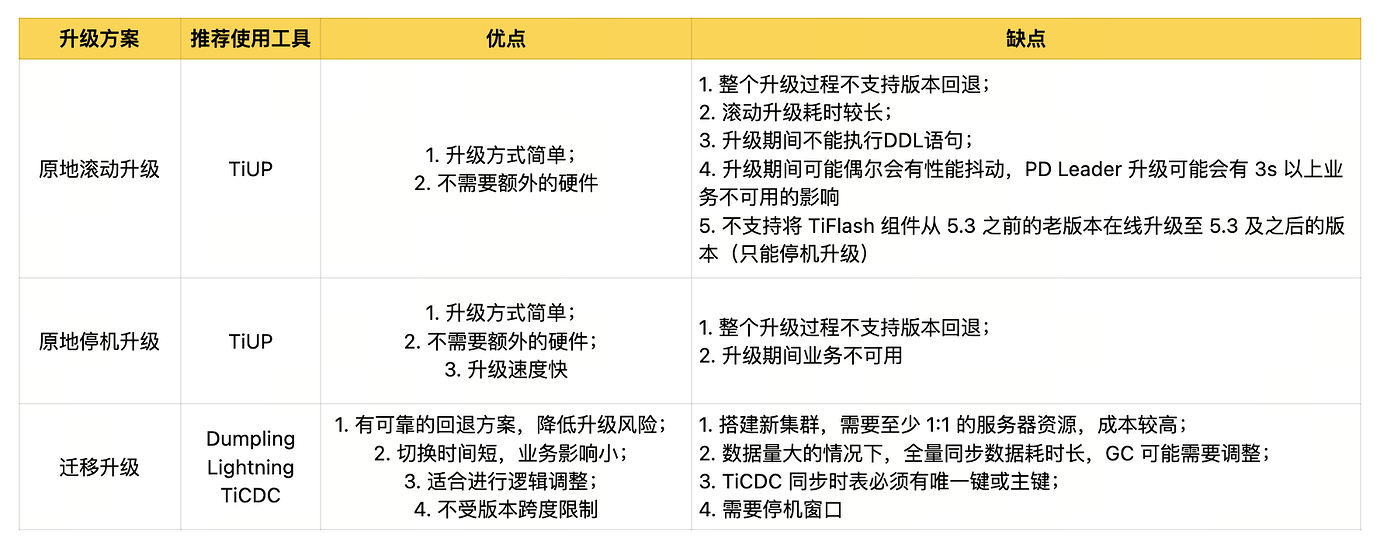

2. Upgrade Plan Selection

image1380×548 92.6 KB

Reference: 专栏 - TiDB 升级方案选择 | TiDB 社区

3. Introduction to Upgrade Tools & FAQ

  1. TiUP

TiDB package manager on physical or virtual machines, managing many components of TiDB such as TiDB, PD, TiKV, etc. When you want to run any component in the TiDB ecosystem, you only need to execute one TiUP command (starting from TiDB v4.0).

TiUP Documentation: TiUP 简介 | PingCAP 文档中心

TiUP FAQ: TiUP FAQ | PingCAP 文档中心

  1. Dumpling

Data export tool that can export data stored in TiDB or MySQL to SQL or CSV format for logical full backup. Dumpling also supports exporting data to Amazon S3.

Dumpling Documentation: 使用 Dumpling 导出数据 | PingCAP 文档中心

  1. Lightning

Data import tool used to import TB-level data from static files into TiDB clusters, commonly used for initial data import of TiDB clusters.

Lightning Documentation: TiDB Lightning 简介 | PingCAP 文档中心

Requirements for Importing (New) Databases: TiDB Lightning 目标数据库要求 | PingCAP 文档中心

Lightning Common Troubleshooting: TiDB Lightning 故障处理 | PingCAP 文档中心

  1. TiCDC

Incremental data synchronization tool that achieves TiDB incremental data synchronization by pulling TiKV change logs. Typical application scenarios of TiCDC include setting up master-slave replication between multiple TiDB clusters or building data integration services with other heterogeneous systems.

TiCDC Documentation: TiCDC 简介 | PingCAP 文档中心

TiCDC Common Issues and Solutions: TiCDC 故障处理 | PingCAP 文档中心

4. What Preparations Should Be Made Before Upgrading?

  1. Must-Read Documents Before Upgrading

  1. Understanding the Health Status of the System

  2. Confirm whether the cluster topology meets high availability requirements

  3. Check if the cluster topology is healthy

  4. Ensure hardware configuration meets standards

  5. Review cluster usage

  6. Cluster data volume

  7. Large table situations

  8. Table width, number of fields

  9. SQL statement DDL\DML execution status QPS

  10. Charset compatibility

  11. Common Issues During Upgrade

(1) What are the impacts of rolling upgrades?

During the rolling upgrade of TiDB, business operations will be affected to some extent. Therefore, it is not recommended to perform rolling upgrades during peak business hours. The minimum cluster topology configuration (TiDB * 2, PD * 3, TiKV * 3) is required. If there are Pump and Drainer services in the cluster environment, it is recommended to stop Drainer first, then perform the rolling upgrade (Pump will be upgraded when TiDB is upgraded).

(2) Can the cluster be upgraded while executing DDL requests?

  • If the TiDB version before the upgrade is lower than v7.1.0:

    • Do not perform upgrade operations when there are DDL statements being executed in the cluster (usually long-running DDL statements such as ADD INDEX and column type changes). Before upgrading, it is recommended to use the ADMIN SHOW DDL command to check if there are any ongoing DDL jobs in the cluster. If you need to upgrade, wait for the DDL to complete or use the ADMIN CANCEL DDL command to cancel the DDL job before upgrading.

    • Do not execute DDL statements during the TiDB cluster upgrade process, as this may result in undefined behavior.

  • If the TiDB version before the upgrade is v7.1.0 or higher:

    • You do not need to follow the restrictions of lower version upgrades, i.e., you can receive user DDL tasks during the upgrade. It is recommended to refer to Smooth Upgrade of TiDB.

  1. User Version Upgrade Practices

7.5.x Upgrade Practices

7.1.x Upgrade Practices

During Upgrade

Using TiUP to Upgrade TiDB

This document applies to the following upgrade paths:

  • Using TiUP to upgrade from TiDB 4.0 to TiDB 7.5.

  • Using TiUP to upgrade from TiDB 5.0-5.4 to TiDB 7.5.

  • Using TiUP to upgrade from TiDB 6.0-6.6 to TiDB 7.5.

  • Using TiUP to upgrade from TiDB 7.0-7.4 to TiDB 7.5.

Warning

  1. TiFlash components cannot be upgraded online from versions earlier than 5.3 to versions 5.3 and later, only offline upgrades are supported. If other components in the cluster (such as tidb, tikv) cannot be upgraded offline, refer to the precautions in Non-Stop Upgrade.

  2. Do not execute DDL statements during the TiDB cluster upgrade process, as this may result in undefined behavior.

  3. Do not perform upgrade operations when there are DDL statements being executed in the cluster (usually long-running DDL statements such as ADD INDEX and column type changes). Before upgrading, it is recommended to use the ADMIN SHOW DDL command to check if there are any ongoing DDL jobs in the cluster. If you need to upgrade, wait for the DDL to complete or use the ADMIN CANCEL DDL command to cancel the DDL job before upgrading.

When upgrading from TiDB v7.1 to a higher version, you can ignore restrictions 2 and 3 above. It is recommended to refer to the Smooth Upgrade of TiDB Restrictions.

After Upgrade

Common Issues After Upgrade

This section lists some issues that may be encountered after the upgrade and their solutions.

Charset Issues When Executing DDL Operations

In TiDB v2.1.0 and earlier versions (including all v2.0 versions), the default charset is UTF8. Starting from v2.1.1, the default charset has been changed to UTF8MB4. If the charset of the table was explicitly specified as UTF8 when creating the table in v2.1.0 and earlier versions, executing DDL operations may fail after upgrading to v2.1.1.

To avoid this issue, pay attention to the following two points:

  • Before v2.1.3, TiDB does not support modifying the charset of columns. Therefore, when executing DDL operations, the charset of the new column needs to be consistent with the charset of the old column.

  • Before v2.1.3, even if the charset of the column is different from the charset of the table, show create table will not display the charset of the column, but you can view the charset of the column by obtaining the table metadata through the HTTP API, as shown in the example below.

unsupported modify column charset utf8mb4 not match origin utf8

  • Before Upgrade: v2.1.0 and earlier versions
create table t(a varchar(10)) charset=utf8;

Query OK, 0 rows affected
Time: 0.106s

show create table t

+-------+-------------------------------------------------------+
| Table | Create Table                                          |
+-------+-------------------------------------------------------+
| t     | CREATE TABLE `t` (                                    |
|       |   `a` varchar(10) DEFAULT NULL                        |
|       | ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin |
+-------+-------------------------------------------------------+
1 row in set
Time: 0.006s
  • After Upgrade: v2.1.1, v2.1.2 will encounter the following issue, v2.1.3 and later versions will not encounter the following issue.
alter table t change column a a varchar(20);

ERROR 1105 (HY000): unsupported modify column charset utf8mb4 not match origin utf8

Solution: Explicitly specify the column charset to be consistent with the original charset.

alter table t change column a a varchar(22) character set utf8;

  • According to point 1, if the column charset is not specified here, the default UTF8MB4 will be used, so the column charset needs to be specified to be consistent with the original charset.

  • According to point 2, use the HTTP API to obtain the table metadata, and then search for the column charset based on the column name and Charset keyword.

curl "http://$IP:10080/schema/test/t" | python -m json.tool
  • Here, the python tool for formatting json is used, but it can also be omitted, as it is only for convenience of annotation.

{“ShardRowIDBits”: 0,“auto_inc_id”: 0,“charset”: “utf8”,table charset"collate": “”,“cols”: [ # Column-related information starts here{ …“id”: 1,“name”: {“L”: “a”,“O”: “a"column name},“offset”: 0,“origin_default”: null,“state”: 5,“type”: {“Charset”: “utf8”,column a charset"Collate”: “utf8_bin”,“Decimal”: 0,“Elems”: null,“Flag”: 0,“Flen”: 10,“Tp”: 15}}], … }

unsupported modify charset from utf8mb4 to utf8

  • Before Upgrade: v2.1.1, v2.1.2
create table t(a varchar(10)) charset=utf8;

Query OK, 0 rows affected
Time: 0.109s

show create table t;

+-------+-------------------------------------------------------+
| Table | Create Table                                          |
+-------+-------------------------------------------------------+
| t     | CREATE TABLE `t` (                                    |
|       |   `a` varchar(10) DEFAULT NULL                        |
|       | ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin |
+-------+-------------------------------------------------------+

  • The above show create table only shows the table charset, but actually the column charset is UTF8MB4, which can be confirmed by obtaining the schema through the HTTP API. This is a bug, i.e., the column charset should be consistent with the table charset as UTF8 when creating the table. This issue has been fixed in v2.1.3.

  • After Upgrade: v2.1.3 and later versions

show create table t;

+-------+--------------------------------------------------------------------+
| Table | Create Table                                                       |
+-------+--------------------------------------------------------------------+
| t     | CREATE TABLE `t` (                                                 |
|       |   `a` varchar(10) CHARSET utf8mb4 COLLATE utf8
2
| username: TIDB-Learner | Original post link

Awesome!

3
| username: kkpeter | Original post link

TiCDC needs to be optimized.

4
| username: xfworld | Original post link

My cousin’s great work~ Quite impressive

5
| username: ShawnYan | Original post link

Agree +4000

6
| username: Jellybean | Original post link

Very awesome mutual aid material, cousin version of Artificial Intelligence 4.0 :smile:

7
| username: Aionn | Original post link

The only assistant on the entire network that organizes things, thank you!

8
| username: ShunWah | Original post link

What preparations should be made before upgrading?
During the upgrade
After the upgrade
:+1: Step by step, very detailed :wave:

9
| username: ShawnYan | Original post link

@ShunWah The information is so comprehensive, please share your upgrade experience :stuck_out_tongue_winking_eye:

10
| username: Billmay表妹 | Original post link

Hhhhhhhh Please give my service a rating!

11
| username: GoodTiDBer | Original post link

It is recommended that all inspection parts be automated and that the upgrade function be added to TEM.

12
| username: Tom_wu | Original post link

Excellent information, now upgrading is worry-free :star_struck: :star_struck: :star_struck:

13
| username: ziptoam | Original post link

TICDC is worth studying well; it is a key component in building a composite data architecture.

14
| username: 我是吉米哥 | Original post link

Study, thank you.

15
| username: waeng | Original post link

666 Plus
