Note:
This topic has been translated from a Chinese forum by GPT and might contain errors.
Original topic: 开启TLS后再扩容PD节点集群起不来
[TiDB Usage Environment] Production Environment / Testing
[TiDB Version] v5.4.2
[Reproduction Path] Operations performed that led to the issue
[Encountered Issue: Issue Phenomenon and Impact]
Operations:
- Scale down PD to one node
- Enable TLS: tiup cluster tls tidb-test enable
- Scale up PD
After scaling up, it indicated that the PD nodes could not start, and all three PDs were in the DOWN state.
[Resource Configuration]
[Attachments: Screenshots/Logs/Monitoring]

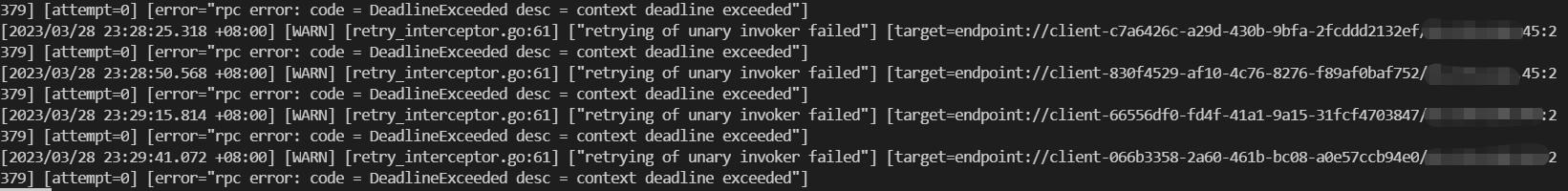

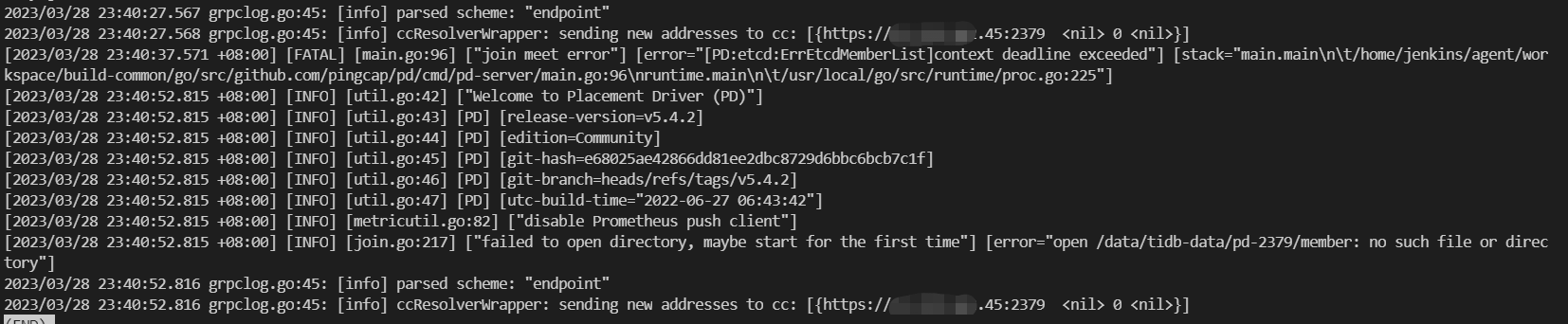

Error node logs (newly scaled):
pd_stderr.log
pd.log
Original PD leader node:
Is TLS enabled during the cluster deployment phase, or has TLS been enabled for some time? Are TiKV nodes experiencing similar issues?
After using it for a while, I tried to enable it because the ETCD port was not authenticated. After enabling it, I also expanded TIKV and did not encounter any issues with the expansion.
A new cluster was deployed, PD was scaled down, TLS was enabled, and then PD was scaled up again, but it still won’t start.
Can the expanded machine access port 2379 of that IP in the logs?
Is this issue causing the problem? What is the version of tiup? You need to use version 1.11.0 or above.
You can check this for more details:
Column - The Trials and Tribulations of Enabling Encrypted Communication TLS in TiDB Production Cluster - Opening Chapter | TiDB Community
The version is v1.11, I started it after reading this article.
What is the cluster architecture like?
The cluster architecture is 3tidb3pd9kv, the minimum deployment template. This issue hasn’t been resolved yet, but I have already started the new cluster by enabling the enable_tls parameter in the deployment template during the deployment phase.
Is your PD mixed on one IP? I checked, and in my successful example of enabling TLS, the PDs are deployed on different IPs. Could this be related?
My PD is also on different machines, but it is on the same machine as TiDB. There are three TiDB+PD machines and three TiKV machines.
Hello,
It is recommended to follow the steps in the official documentation: 为 TiDB 组件间通信开启加密传输 | PingCAP 文档中心
The command tiup cluster tls tidb-test enable is still in the experimental stage and is not recommended for production use at this time.
|
