Bks parameter logBackupTemplate

Translated
1

Note:
This topic has been translated from a Chinese forum by GPT and might contain errors.

Original topic: bks参数logBackupTemplate

| username: liyuntang

[TiDB Usage Environment] Test environment Kubernetes environment, operator version 1.4.6
[TiDB Version] Enterprise Edition 7.1.0
[Reproduction Path] What operations were performed to cause the issue

[Encountered Issue: Problem Phenomenon and Impact]

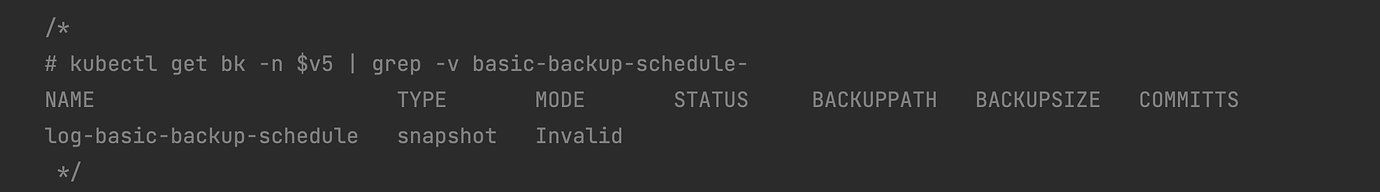

  1. When creating bks and specifying logBackupTemplate as empty (multi-version, currently only version 7.1.0 supports log backup), a bk creation failure occurs after the cluster is created.
  2. When creating bks without specifying logBackupTemplate, the creation of bks fails with the following error message:
    BackupSchedule.pingcap.com “basic-backup-schedule” is invalid: spec.logBackupTemplate: Invalid value: “null”: spec.logBackupTemplate in body must be of type object: “null”

Questions:

  1. Can the logBackupTemplate parameter be omitted when creating bks?
  2. If the logBackupTemplate parameter must be specified, how can the bk creation failure issue be resolved?

image1380×192 20.8 KB

bks configuration is as follows:

kubectl get bks -n $v5 -o yaml

apiVersion: v1
items:

  • apiVersion: pingcap.com/v1alpha1
    kind: BackupSchedule
    metadata:
    creationTimestamp: “2024-03-13T06:39:52Z”
    generation: 22
    name: basic-backup-schedule
    namespace: 9015e36d-9378-4637-9169-c71bf8d659fb
    resourceVersion: “641794849”
    selfLink: /apis/pingcap.com/v1alpha1/namespaces/9015e36d-9378-4637-9169-c71bf8d659fb/backupschedules/basic-backup-schedule
    uid: 6b6c9008-8fd6-4251-a7f8-f1a8f5341b95
    spec:
    backupTemplate:
    affinity:
    nodeAffinity:
    requiredDuringSchedulingIgnoredDuringExecution:
    nodeSelectorTerms:
    - matchExpressions:
    - key: failure-domain.beta.kubernetes.io/zone
    operator: In
    values:
    - cn-qingyangtest-1a
    backoffRetryPolicy:
    maxRetryTimes: 2
    minRetryDuration: 300s
    retryTimeout: 30m
    backupMode: snapshot
    backupType: full
    br:
    cluster: basic
    clusterNamespace: 9015e36d-9378-4637-9169-c71bf8d659fb
    sendCredToTikv: true
    cleanPolicy: Retain
    resources: {}
    s3:
    bucket: tidb-ks3-bucket
    endpoint: http://ks.ksyun.com
    prefix: 20001/9fb/manual/
    provider: other
    region: BEIJING
    secretName: ks3-secret
    toolImage: hub.kce.ksyun/b/br:v5.4.1
    imagePullSecrets:
    • name: nosql-image
      logBackupTemplate:
      backoffRetryPolicy:
      maxRetryTimes: 2
      minRetryDuration: 300s
      retryTimeout: 30m
      backupMode: snapshot
      resources: {}
      maxBackups: 0
      schedule: ‘*/5 * * * *’
      storageClassName: openebs-hostpath
      status:
      lastBackup: basic-backup-schedule-2024-03-13t10-25-00
      lastBackupTime: “2024-03-13T10:25:00Z”
      logBackup: log-basic-backup-schedule
      kind: List
      metadata:
      resourceVersion: “”
      selfLink: “”
2
| username: TiDBer_5cwU0ltE | Original post link

Is deploying TiDB on K8S suitable for a production environment? Here, we only use physical machines…

3
| username: liyuntang | Original post link

Both production and testing are on Kubernetes.

4
| username: 小龙虾爱大龙虾 | Original post link

Are you saying that empty is written as logbackuptemplate: {}?

5
| username: yiduoyunQ | Original post link

1.4.4 introduced an issue (mistake) BR: Auto truncate log backup in backup schedule by WizardXiao · Pull Request #4904 · pingcap/tidb-operator · GitHub, and versions 1.4.4 to 1.4.6 all have problems.
Options:

  1. Roll back to 1.4.3
  2. Upgrade to 1.4.7 (only fixes this bug TiDB Operator 1.4. Release Notes | PingCAP 文档中心)

Note: Also update the corresponding CRD version (critical), 升级 TiDB Operator | PingCAP 文档中心

6
| username: liyuntang | Original post link

Yes, it is configured like this:

bks.Spec.LogBackupTemplate = &v1alpha1.BackupSpec{}

7
| username: 小龙虾爱大龙虾 | Original post link

This expert is right, upgrading the TiDB operator is the way to go. Here is the issue for reference: logBackupTemplate in backup schedule should be optional · Issue #4955 · pingcap/tidb-operator · GitHub
