CDC Monitoring Status is Incorrect

Translated
1

Note:
This topic has been translated from a Chinese forum by GPT and might contain errors.

Original topic: cdc监控状态不对

| username: Holland

[Test Environment for TiDB]
[TiDB Version]
6.1.1
[Reproduction Path]
After enabling two change feeds for synchronization, manually pause the task with ID 38c108c6-3ef0-46c7-8862-a3c63d269ebb, then observe through cdc cli and Grafana monitoring.

  1. Pause the task using cdc cli --pd=localhost:2379 changefeed pause --changefeed-id 38c108c6-3ef0-46c7-8862-a3c63d269ebb

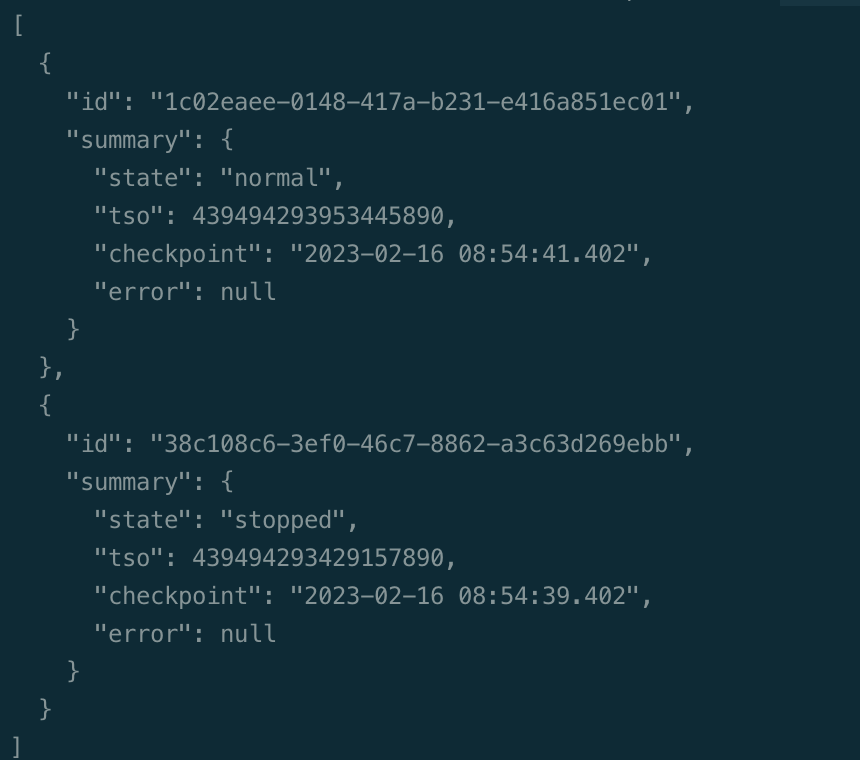

  2. List tasks using cdc cli --pd=localhost:2379 changefeed list
    See that 38c108*** is in stopped status
    image860×760 20 KB

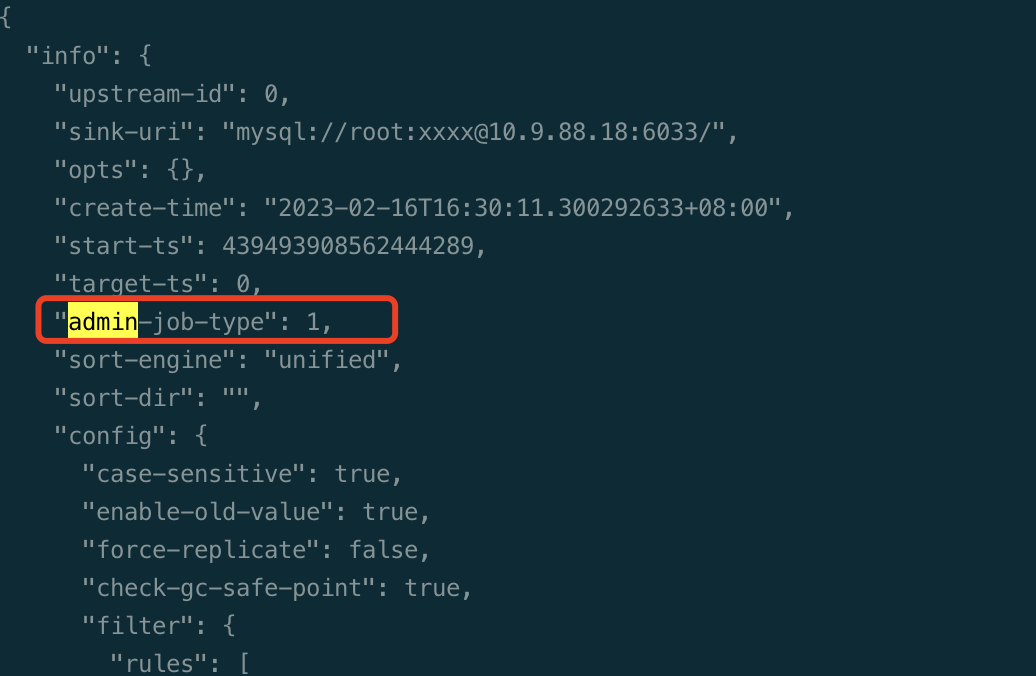

  3. Query the task using cdc cli --pd=localhost:2379 changefeed query --changefeed-id=38c108c6-3ef0-46c7-8862-a3c63d269ebb
    See that the admin-job-type status is 1 (paused)
    image1036×676 46.7 KB
  4. See through Grafana monitoring that the status is 3
    企业微信截图_4087aa07-03fa-4a0d-a30a-00ced87318ed
    企业微信截图_4087aa07-03fa-4a0d-a30a-00ced87318ed1380×270 30.8 KB
  5. After deleting 38c108c6-3ef0-46c7-8862-a3c63d269ebb using changefeed remove --changefeed-id 38c108c6-3ef0-46c7-8862-a3c63d269ebb, Grafana still shows data, and the status remains 3

[Encountered Problem: Phenomenon and Impact]
After changing the cdc changefeed to pause or deleting it, Grafana can still collect data for that changefeed, and the status remains 3.
[Resource Configuration]
[Attachments: Screenshots/Logs/Monitoring]

2
| username: ealam_小羽 | Original post link

Status 3 is not a state that can normally receive data.
Looking at your example, showing 3 after deletion is normal, and 1 is not displayed, which should be a monitoring transient issue. If you wait a bit longer, 1 should appear.

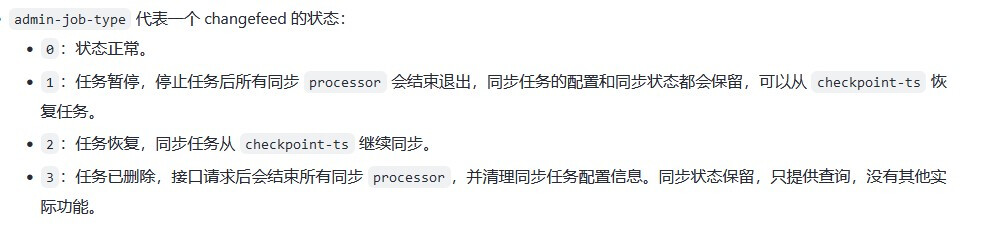

Image986×234 44.4 KB

After stopping or deleting a changefeed, the task itself still exists, so the status of this changefeed will still be displayed in the monitoring. This is normal. If you want to delete it directly, add --force to force the deletion, and it should be gone.

3
| username: Holland | Original post link

Okay, I’ll try again, thank you.

4
| username: system | Original post link

This topic was automatically closed 60 days after the last reply. New replies are no longer allowed.
