Error During DM Installation

Translated
1

Note:
This topic has been translated from a Chinese forum by GPT and might contain errors.

Original topic: dm 安装报错

| username: 大飞飞呀

[TiDB Usage Environment] Production Environment / Test / Poc
[TiDB Version]
[Reproduction Path] What operations were performed to encounter the issue

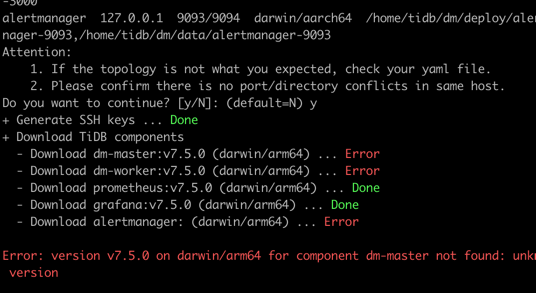

tiup dm deploy dm-test 7.5.0 ./topology.yaml -p
Attention:
1. If the topology is not what you expected, check your yaml file.
2. Please confirm there is no port/directory conflicts in the same host.
Do you want to continue? [y/N]: (default=N) y

  • Generate SSH keys … Done
  • Download TiDB components
    • Download dm-master:v7.5.0 (darwin/arm64) … Error
    • Download dm-worker:v7.5.0 (darwin/arm64) … Error
    • Download prometheus:v7.5.0 (darwin/arm64) … Done
    • Download grafana:v7.5.0 (darwin/arm64) … Done
    • Download alertmanager: (darwin/arm64) … Error

Error: component alertmanager doesn’t support platform darwin/arm64
[Encountered Issue: Issue Phenomenon and Impact]

[Resource Configuration] Enter TiDB Dashboard - Cluster Info - Hosts and take a screenshot of this page
[Attachment: Screenshot/Log/Monitoring]

2
| username: 小龙虾爱大龙虾 | Original post link

You are using a local mirror, right? You should merge the images. Refer to: 使用 TiUP 部署 TiDB 集群 | PingCAP 文档中心

3
| username: 大飞飞呀 | Original post link

I didn’t use the offline package, just followed the steps on the official website with tiup.

4
| username: 小龙虾爱大龙虾 | Original post link

tiup mirror show
tiup list dm-master --all

5
| username: 大飞飞呀 | Original post link

Indeed, there is only linux/arm64 and no darwin/arm64.

6
| username: 小龙虾爱大龙虾 | Original post link

Then it is not supported. There is a bit of a problem with the official documentation here; it doesn’t mention support for the arm64 architecture, but there is a package.

7
| username: wangccsy | Original post link

ARM64 architecture is not supported.

8
| username: 小龙虾爱大龙虾 | Original post link

But there is a package :thinking:

9
| username: dba远航 | Original post link

component alertmanager doesn’t support platform darwin/arm64

10
| username: 小龙虾爱大龙虾 | Original post link

You see, isn’t there an arm64 package listed here? It doesn’t quite match the description in the official documentation TiDB Data Migration 集群软硬件环境需求 | PingCAP 文档中心.

tiup list dm-master --all

Available versions for dm-master:
Version                                   Installed  Release                    Platforms
-------                                   ---------  -------                    ---------
nightly -> v7.6.0-alpha-nightly-20231229             2023-12-28T17:05:40Z       linux/amd64,linux/arm64
build-debug-mode                                     2022-06-10T14:27:38+08:00  linux/amd64,linux/arm64
v2.0.0-rc                                            2020-08-21T17:49:08+08:00  linux/amd64,linux/arm64
v2.0.0-rc.2                                          2020-09-01T20:51:29+08:00  linux/amd64,linux/arm64
v2.0.0                                               2020-10-30T16:10:58+08:00  linux/amd64,linux/arm64
v2.0.1                                               2020-12-25T13:22:29+08:00  linux/amd64,linux/arm64
v2.0.3                                               2021-05-11T22:14:31+08:00  linux/amd64,linux/arm64
v2.0.4                                               2021-06-18T16:34:30+08:00  linux/amd64,linux/arm64
v2.0.5                                               2021-07-30T18:46:27+08:00  linux/amd64,linux/arm64
v2.0.6                                               2021-08-13T17:36:06+08:00  linux/amd64,linux/arm64
v2.0.7                                               2021-09-29T16:34:31+08:00  linux/amd64,linux/arm64
v5.3.0                                               2021-11-29T16:50:31+08:00  linux/amd64,linux/arm64
v5.3.1                                               2022-03-07T14:16:58+08:00  linux/amd64,linux/arm64
v5.3.2                                               2022-06-29T11:03:11+08:00  linux/amd64,linux/arm64
v5.3.3                                               2022-09-14T19:14:28+08:00  linux/amd64,linux/arm64
v5.3.4                                               2022-11-24T12:34:32+08:00  linux/amd64,linux/arm64
v5.4.0                                               2022-02-14T10:18:30+08:00  linux/amd64,linux/arm64
11
| username: Kongdom | Original post link

Has this issue been resolved?
If it has been resolved, please mark the question as [This content was helpful to me] so that the issue can be searchable and help others find the answer more efficiently.
If your issue has not been resolved, please continue to ask and provide feedback on the problems you encountered, along with operation prompts or screenshots.
