How to Identify Bottlenecks in Stress Testing?

translator_bot · June 21, 2024, 9:45am

Note:
This topic has been translated from a Chinese forum by GPT and might contain errors.

Original topic: 怎么判断压力测试的瓶颈？

| username: zhanggame1

[TiDB Usage Environment] Production Environment / Testing / Poc
[TiDB Version] 7.5.0
[Encountered Issue: Problem Phenomenon and Impact]
Cluster, 3 nodes mixed deployment, 3 nodes load balancing

Using tpcc for 500-thread stress testing:
tiup bench tpcc prepare --warehouses 20 --db test -H 10.5.6.200 -P 4000 -U root -p
tiup bench tpcc -H 10.5.6.200 -P 4000 --db test --warehouses 20 --threads 500 --time 10m run -U root -p

It seems the cluster has hit a bottleneck, not sure if it’s a disk bottleneck.

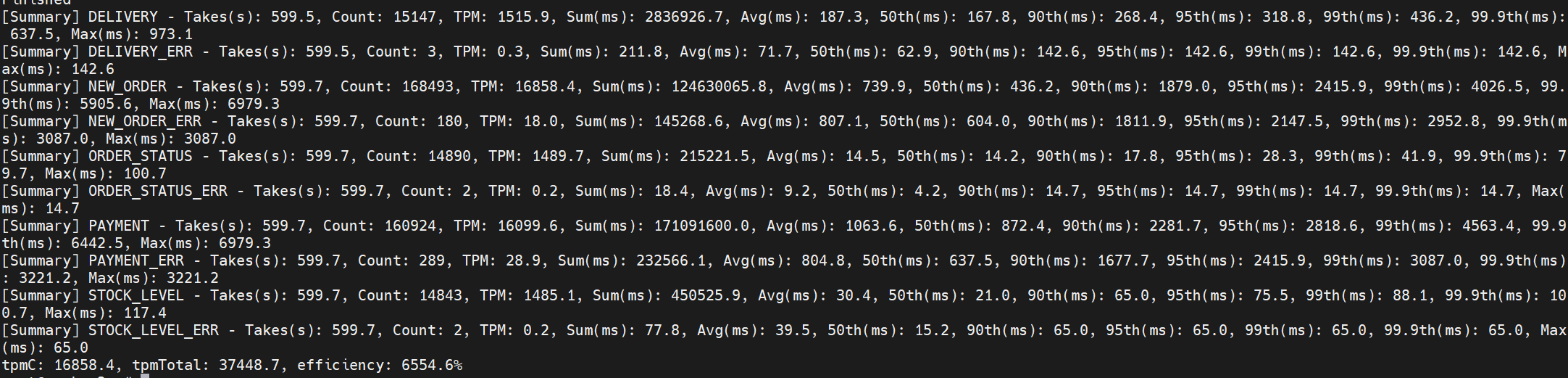

Test results:

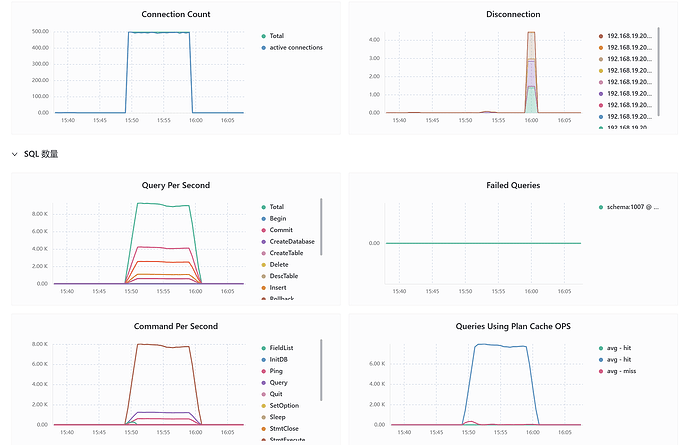

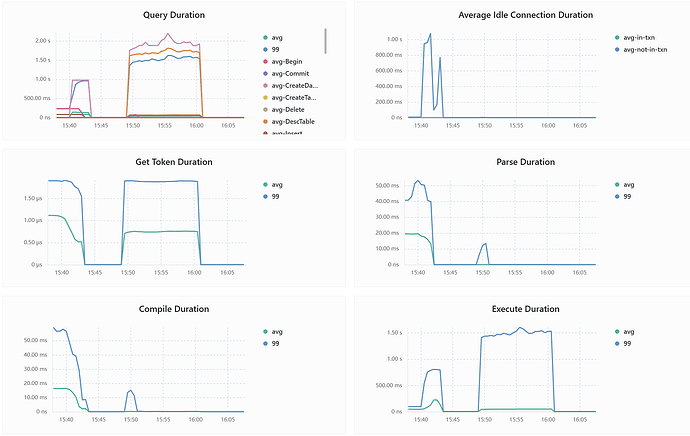

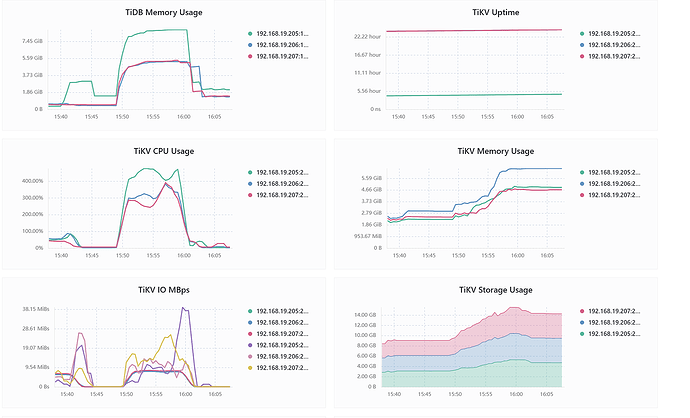

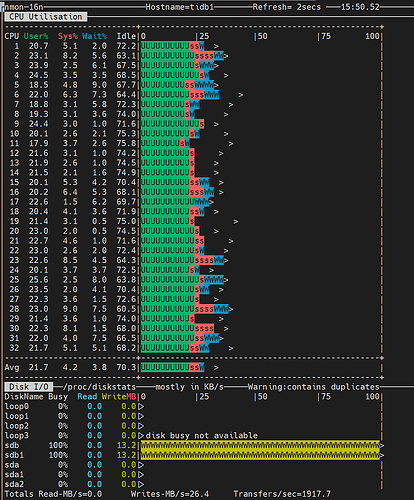

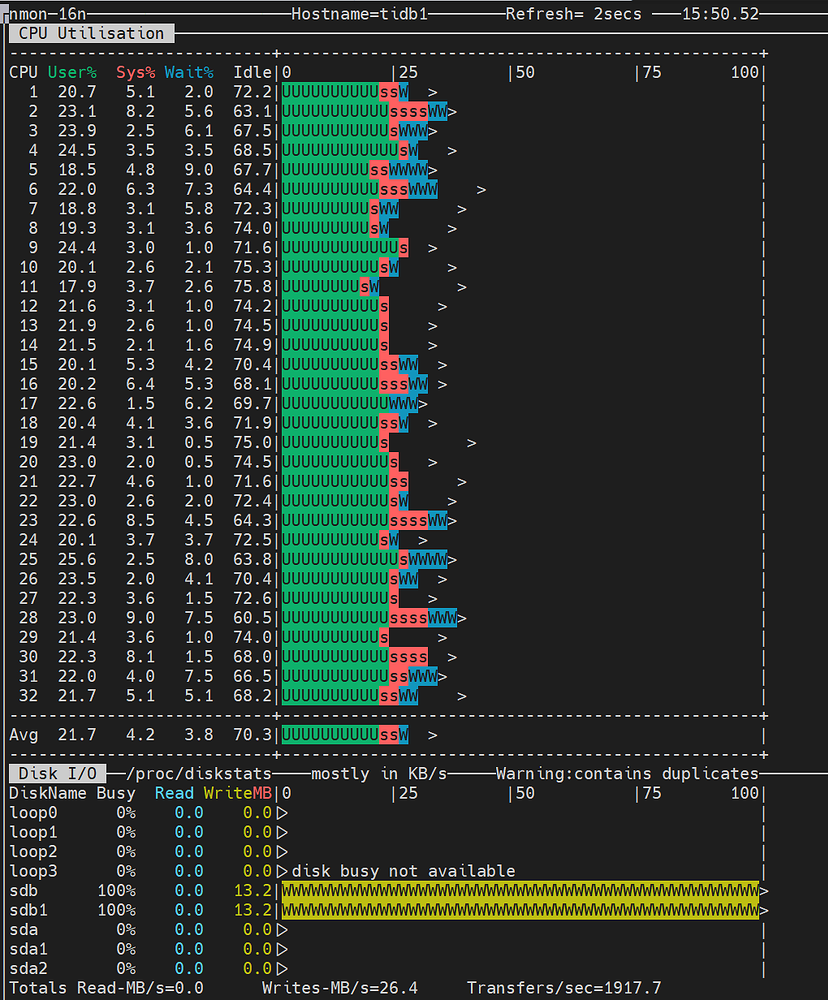

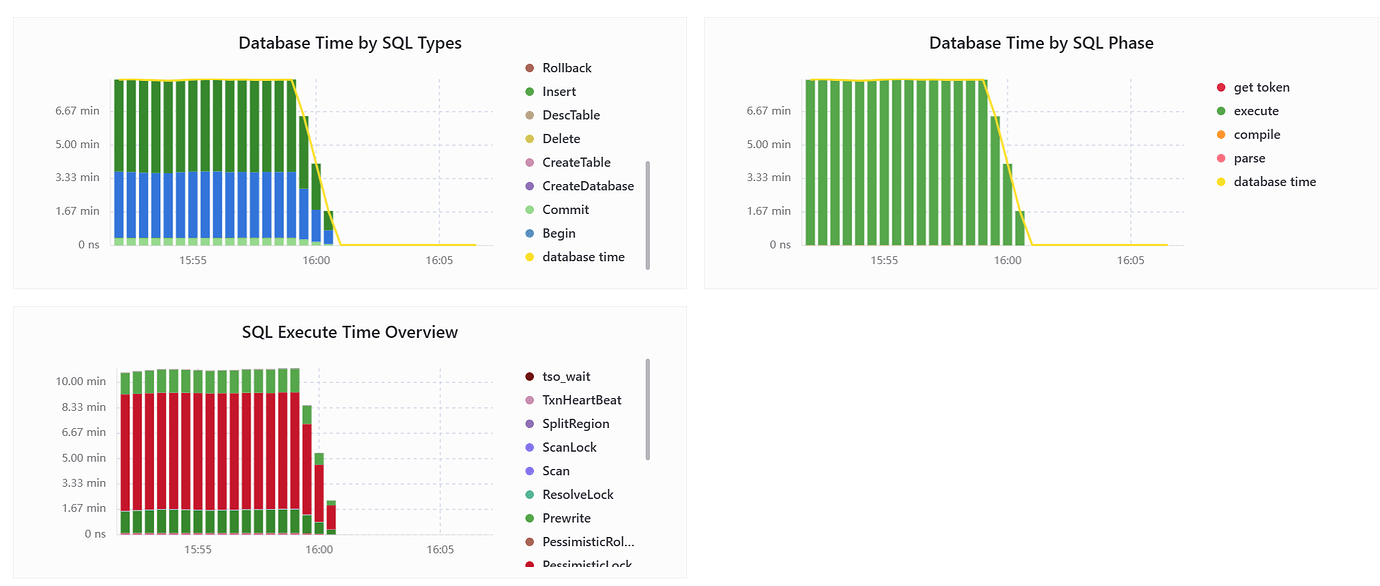

Some performance monitoring conditions:

translator_bot · June 21, 2024, 9:45am

| username: 像风一样的男子 | Original post link

Whether there is a bottleneck comes down to a few indicators: CPU, memory, disk read/write, and network bandwidth. Check which one has reached its limit.

translator_bot · June 21, 2024, 9:45am

| username: tidb菜鸟一只 | Original post link

IO has reached a bottleneck.

translator_bot · June 21, 2024, 9:45am

| username: Miracle | Original post link

Isn’t this drive an SSD? How did it get filled up with just a few dozen megabytes?

translator_bot · June 21, 2024, 9:45am

| username: zhanggame1 | Original post link

The fio test results for SATA SSD are as follows:

root@tidb1:/tidb-data# fio --bs=64k --ioengine=libaio --iodepth=64 --direct=1 --rw=write --numjobs=32 --time_based --runtime=30 --randrepeat=0 --group_reporting --name=fio-read --size=10G --filename=/tidb-data/fiotest
fio-read: (g=0): rw=write, bs=(R) 64.0KiB-64.0KiB, (W) 64.0KiB-64.0KiB, (T) 64.0KiB-64.0KiB, ioengine=libaio, iodepth=64
...
fio-3.28
Starting 32 processes
fio-read: Laying out IO file (1 file / 10240MiB)
Jobs: 32 (f=32): [W(32)][100.0%][w=889MiB/s][w=14.2k IOPS][eta 00m:00s]
fio-read: (groupid=0, jobs=32): err= 0: pid=55609: Fri Dec 15 08:06:36 2023
  write: IOPS=14.1k, BW=878MiB/s (921MB/s)(25.8GiB/30021msec); 0 zone resets
    slat (usec): min=12, max=26231, avg=2261.86, stdev=1810.65
    clat (msec): min=5, max=240, avg=143.15, stdev=15.15
     lat (msec): min=10, max=243, avg=145.41, stdev=15.31
    clat percentiles (msec):
     |  1.00th=[  101],  5.00th=[  118], 10.00th=[  125], 20.00th=[  133],
     | 30.00th=[  138], 40.00th=[  142], 50.00th=[  144], 60.00th=[  148],
     | 70.00th=[  153], 80.00th=[  155], 90.00th=[  161], 95.00th=[  165],
     | 99.00th=[  176], 99.50th=[  180], 99.90th=[  190], 99.95th=[  197],
     | 99.99th=[  205]
   bw (  KiB/s): min=627878, max=1030656, per=99.67%, avg=896516.98, stdev=1800.37, samples=1888
   iops        : min= 9810, max=16104, avg=14008.07, stdev=28.13, samples=1888
  lat (msec)   : 10=0.01%, 20=0.02%, 50=0.10%, 100=0.84%, 250=99.04%
  cpu          : usr=0.74%, sys=5.20%, ctx=514522, majf=0, minf=417
  IO depths    : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.2%, >=64=99.5%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.1%, >=64=0.0%
     issued rwts: total=0,421935,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=64

Run status group 0 (all jobs):
  WRITE: bw=878MiB/s (921MB/s), 878MiB/s-878MiB/s (921MB/s-921MB/s), io=25.8GiB (27.7GB), run=30021-30021msec

Disk stats (read/write):
  sdb: ios=0/408267, merge=0/14825, ticks=0/7087369, in_queue=7087370, util=100.00%

root@tidb1:/tidb-data# fio --bs=4k --ioengine=libaio --iodepth=64 --direct=1 --rw=write --numjobs=32 --time_based --runtime=30 --randrepeat=0 --group_reporting --name=fio-read --size=10G --filename=/tidb-data/fiotest
fio-read: (g=0): rw=write, bs=(R) 4096B-4096B, (W) 4096B-4096B, (T) 4096B-4096B, ioengine=libaio, iodepth=64
...
fio-3.28
Starting 32 processes
Jobs: 32 (f=32): [W(32)][100.0%][w=642MiB/s][w=164k IOPS][eta 00m:00s]
fio-read: (groupid=0, jobs=32): err= 0: pid=55716: Fri Dec 15 08:07:35 2023
  write: IOPS=163k, BW=637MiB/s (668MB/s)(18.7GiB/30006msec); 0 zone resets
    slat (usec): min=3, max=5428, avg=193.15, stdev=195.33
    clat (usec): min=462, max=49280, avg=12355.59, stdev=1834.97
     lat (usec): min=807, max=49450, avg=12549.13, stdev=1853.74
    clat percentiles (usec):
     |  1.00th=[ 8979],  5.00th=[ 9896], 10.00th=[10421], 20.00th=[10945],
     | 30.00th=[11469], 40.00th=[11863], 50.00th=[12256], 60.00th=[12649],
     | 70.00th=[13042], 80.00th=[13566], 90.00th=[14484], 95.00th=[15270],
     | 99.00th=[17695], 99.50th=[19268], 99.90th=[27132], 99.95th=[31065],
     | 99.99th=[36963]
   bw (  KiB/s): min=402097, max=704703, per=100.00%, avg=652565.98, stdev=1394.31, samples=1888
   iops        : min=100524, max=176172, avg=163139.81, stdev=348.57, samples=1888
  lat (usec)   : 500=0.01%, 750=0.01%, 1000=0.01%
  lat (msec)   : 2=0.01%, 4=0.01%, 10=6.01%, 20=93.62%, 50=0.37%
  cpu          : usr=1.59%, sys=54.20%, ctx=2344372, majf=0, minf=424
  IO depths    : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.1%, >=64=0.0%
     issued rwts: total=0,4893391,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=64

Run status group 0 (all jobs):
  WRITE: bw=637MiB/s (668MB/s), 637MiB/s-637MiB/s (668MB/s-668MB/s), io=18.7GiB (20.0GB), run=30006-30006msec

Disk stats (read/write):
  sdb: ios=0/4847188, merge=0/40007, ticks=0/7442861, in_queue=7442860, util=99.97%

translator_bot · June 21, 2024, 9:45am

| username: 托马斯滑板鞋 | Original post link

Why does this latency feel a bit high?

translator_bot · June 21, 2024, 9:45am

| username: zhanggame1 | Original post link

Don’t worry about latency, as long as the TPS can be improved.

translator_bot · June 21, 2024, 9:45am

| username: 托马斯滑板鞋 | Original post link

Have you tried running the 20-warehouse TPC-C on other databases? I suspect the data volume is too small, causing hotspots. Try increasing it to 1000 warehouses and then stress test again.

translator_bot · June 21, 2024, 9:45am

| username: Miracle | Original post link

Is the disk being used by other services?
Can you run it again and then use iostat to see if it matches the IO usage in this report?

translator_bot · June 21, 2024, 9:45am

| username: RenlySir | Original post link

Try adjusting a few parameters:

TiDB configuration file:
log.level: “error”
prepared-plan-cache.enabled: true
tikv-client.max-batch-wait-time: 2000000

TiKV configuration file:
raftstore.apply-max-batch-size: 2048
raftstore.apply-pool-size: 3
raftstore.store-max-batch-size: 2048
raftstore.store-pool-size: 2
readpool.storage.normal-concurrency: 10
server.grpc-concurrency: 6
enable-async-apply-prewrite: true
enable-log-recycle: true

`compression-per-level`

Default compression algorithm for each level.
Default value for defaultcf: [“no”, “no”, “lz4”, “lz4”, “lz4”, “zstd”, “zstd”]
Default value for writecf: [“no”, “no”, “lz4”, “lz4”, “lz4”, “zstd”, “zstd”]
Default value for lockcf: [“no”, “no”, “no”, “no”, “no”, “no”, “no”]

Modify defaultcf to [“no”, “no”, “zstd”, “zstd”, “zstd”, “zstd”, “zstd”]

Global variables:
set global tidb_hashagg_final_concurrency=1;
set global tidb_hashagg_partial_concurrency=1;
set global tidb_enable_async_commit = 1;
set global tidb_enable_1pc = 1;
set global tidb_guarantee_linearizability = 0;
set global tidb_enable_clustered_index = 1;
set global tidb_prepared_plan_cache_size=1000;

set global tidb_enable_stmt_summary = off;

Try again and check the tpmC size.

translator_bot · June 21, 2024, 9:45am

| username: zhanggame1 | Original post link

A dedicated physical test machine with no other applications deployed.

translator_bot · June 21, 2024, 9:45am

| username: RenlySir | Original post link

Enabling compression and trading CPU for I/O should improve things.

translator_bot · June 21, 2024, 9:45am

| username: zhanggame1 | Original post link

I’ll try adding more hard drives to see if more TiKV instances can be started.

translator_bot · June 21, 2024, 9:45am

| username: RenlySir | Original post link

More ratio? Or one TiKV per disk, deploying multiple TiKVs on one machine?

translator_bot · June 21, 2024, 9:45am

| username: Jellybean | Original post link

You can try increasing the number of stress test threads, for example, to 1000, 2000, or even higher, and see if the performance improves. If it keeps improving, continue to increase the concurrency until you reach a turning point.

If you encounter OOM (Out of Memory) or crashes during this period, it indicates that the current deployment resources are the bottleneck because the machine can’t handle it even before reaching the database’s peak. In this case, you can try using better resource configurations.

If the performance declines without OOM or crashes, but the QPS (Queries Per Second) decreases, you can analyze and compare the resource metrics (memory, CPU, disk IO, bandwidth) usage before and after the decline, as well as the key read/write monitoring panels of TiKV and PD. This will help you draw some comparative conclusions.

In short, either the machine resources in the current environment are the bottleneck, or the database itself has a bottleneck. Conduct multiple tests and then analyze the results.

translator_bot · June 21, 2024, 9:45am

| username: zhanggame1 | Original post link

One TiKV per disk, each machine increased from one TiKV to two, a total of six. The changes have been completed and testing is in progress.

translator_bot · June 21, 2024, 9:45am

| username: 托马斯滑板鞋 | Original post link

x86 or ARM, should NUMA be turned off or bound?

translator_bot · June 21, 2024, 9:45am

| username: wluckdog | Original post link

TiDB nodes can also become bottlenecks. Increasing the number of TiDB instances and configuring proxies for TiDB nodes can also improve performance.

translator_bot · June 21, 2024, 9:45am

| username: zhanggame1 | Original post link

The hardware is a physical machine
CPU: Intel(R) Xeon(R) Gold 6326 CPU @ 2.90GHz

Memory: 128GB

Several SATA SSDs

No NUMA-related configuration

translator_bot · June 21, 2024, 9:45am

| username: zhanggame1 | Original post link

The test has been completed, here are the conclusions:

With 3 servers mixed deployment, we started testing with 3 PD, 3 TiDB, and 3 TiKV mixed deployment, then adjusted to 3 PD, 3 TiDB, and 6 TiKV, with each TiKV having a dedicated hard drive.

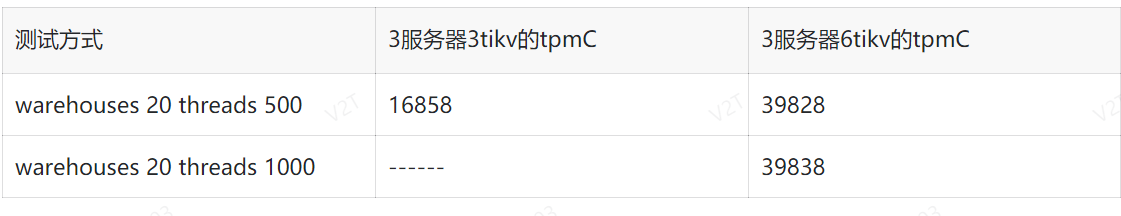

Test data:

It can be considered that the bottleneck is always the hard drive. Increasing TiKV can effectively improve performance. Additionally, the new deployment also adjusted some parameters according to RenlySir’s suggestions:

TiDB:
- log.level: “error”
- prepared-plan-cache.enabled: true
- tikv-client.max-batch-wait-time: 2000000
TiKV:
- raftstore.apply-max-batch-size: 2048
- raftstore.apply-pool-size: 3
- raftstore.store-max-batch-size: 2048
- raftstore.store-pool-size: 2
- readpool.storage.normal-concurrency: 10
- server.grpc-concurrency: 6
