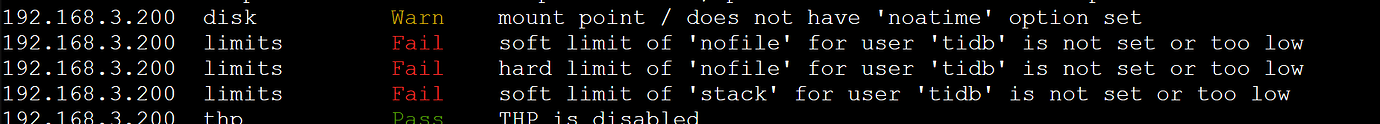

192.168.3.201 limits Fail soft limit of 'stack' for user 'tidb' is not set or too low
192.168.3.201 limits Fail soft limit of 'nofile' for user 'tidb' is not set or too low
192.168.3.201 limits Fail hard limit of 'nofile' for user 'tidb' is not set or too low
192.168.3.200 sysctl Fail net.ipv4.tcp_syncookies = 1, should be 0
【Additional Background Information or Screenshots】
To solve this problem, you need to ensure that the TiUP tool can correctly read these configuration files and apply the configurations to the TiDB instance. Here are some possible solutions:
Ensure that the TiUP tool has sufficient permissions to read the files under the /etc/security/limits.d/ and /etc/sysctl.d/ directories. You can use the ls -l command to check the permissions and ownership of the files. Make sure the TiUP tool has enough permissions when it runs.
Ensure that the TiUP tool can access the /etc/security/limits.d/ and /etc/sysctl.d/ directories. Sometimes, the TiUP tool runs in a restricted environment and may not be able to access certain directories. You can try manually accessing these directories in the context where the TiUP tool runs to see if there are any permission issues.
Ensure that the format of the configuration files is correct, especially the file names and contents. The TiUP tool may only be able to read configuration files in a specific format. You can check whether the syntax and format of the files are correct.
Ensure that the configuration items in the configuration files are applicable to the TiDB process. Sometimes, configuration items in the configuration files may be ignored or overridden by other processes. Make sure the configuration items take effect for the TiDB process.
You can try writing these resource limits and kernel behavior configurations into the TiDB startup script to ensure that the TiDB process can correctly apply these configurations when it starts.
Setting resource limits in /etc/security/limits.d/tidb.conf is effective for the tidb user. However, it cannot be read by the tiup deployment tool. It must be set globally (/etc/security/limits.conf) to be read by tiup. However, when deploying Oracle, the settings can be read by the Oracle installer whether they are set globally or in the /etc/security/limits.d/ directory.
[tidb@h200 ~]$ id
uid=1001(tidb) gid=1001(tidb) groups=1001(tidb),10(wheel)
[tidb@h200 ~]$ cat /etc/security/limits.d/tidb.conf
tidb soft nofile 1000000
tidb hard nofile 1000000
tidb soft stack 32768
tidb hard stack 32768
[tidb@h200 ~]$ ulimit -a
real-time non-blocking time (microseconds, -R) unlimited
core file size (blocks, -c) unlimited
data seg size (kbytes, -d) unlimited
scheduling priority (-e) 0
file size (blocks, -f) unlimited
pending signals (-i) 13499
max locked memory (kbytes, -l) 65536
max memory size (kbytes, -m) unlimited
open files (-n) 1000000
pipe size (512 bytes, -p) 8
POSIX message queues (bytes, -q) 819200
real-time priority (-r) 0
stack size (kbytes, -s) 32768
cpu time (seconds, -t) unlimited
max user processes (-u) 13499
virtual memory (kbytes, -v) unlimited
file locks (-x) unlimited
Setting the restrictions for that user, normally, the user should be able to read their own limits upon logging in. There’s no such thing as cross-user reading. If you are using tiup with the tidb user, it should be normal. How did you operate it? Can you post it here so I can try to reproduce it on my end?
Setting user resource limits independently in the /etc/security/limits.d/ directory is a standard practice in Linux systems. The /etc/security/limits.conf file describes it as follows:
[root@idc1-sjcredit-tiup ~]# cat /etc/security/limits.conf
# /etc/security/limits.conf
#
#This file sets the resource limits for the users logged in via PAM.
#It does not affect resource limits of the system services.
#
#Also note that configuration files in /etc/security/limits.d directory,
#which are read in alphabetical order, override the settings in this
#file in case the domain is the same or more specific.
#That means, for example, that setting a limit for wildcard domain here
#can be overridden with a wildcard setting in a config file in the
#subdirectory, but a user specific setting here can be overridden only
#with a user specific setting in the subdirectory.
#
#Each line describes a limit for a user in the form:
|
