SSH Issues in Cluster Deployment

Note:
This topic has been translated from a Chinese forum by GPT and might contain errors.

Original topic: 部署集群ssh问题

| username: TiDBer_TVKpabeM

[TiDB Usage Environment] Production Environment / Testing / PoC
[TiDB Version]
[Reproduction Path] What operations were performed when the issue occurred
[Encountered Issue: Problem Phenomenon and Impact]
Cluster deployment failed

[Resource Configuration]
[Attachments: Screenshots/Logs/Monitoring]


Password-free configuration has been set

| username: 像风一样的男子 | Original post link

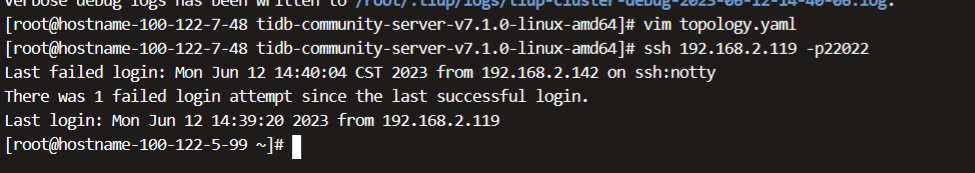

Is the SSH port 22022? Is the SSH port configured as 22022 in topology.yaml?

| username: TiDBer_TVKpabeM | Original post link

The configuration is all 22022.

| username: 我是咖啡哥 | Original post link

A relatively simple way is to have the same password for all machines. There’s no need to configure passwordless login either.
In my environment, I use LDAP accounts to log in. Every time I deploy, I manually create a tidb user on the control machine, and there’s no need to create it on other machines; it gets created automatically during deployment. It works quite smoothly.

| username: linnana | Original post link

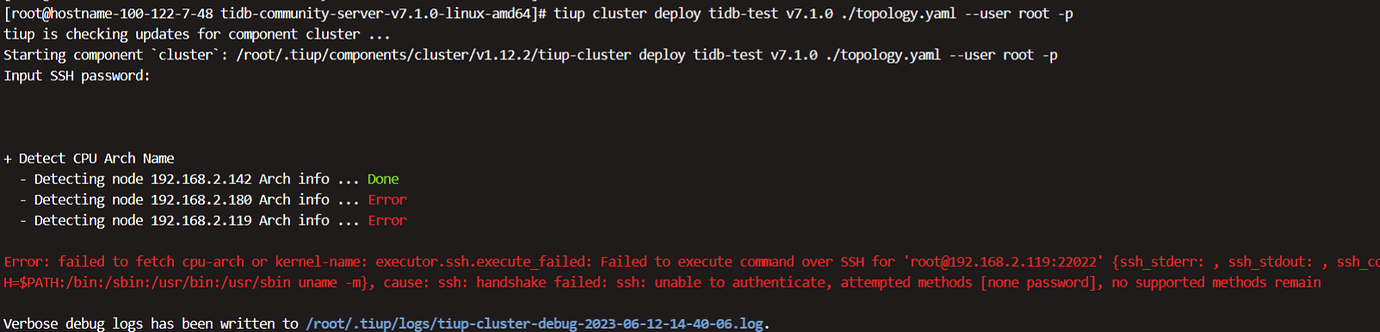

Is the CPU based on the ARM architecture?

| username: zhanggame1 | Original post link

Install with the root user, no need to configure password-free with -p.

| username: Hi70KG | Original post link

It seems like the error is related to the architecture. Can you check if the architecture meets the requirements specified in the official documentation?

  • Currently, TiUP Cluster supports deploying TiDB clusters on x86_64 (AMD64) and ARM architectures.
    • For AMD64 architecture, it is recommended to use CentOS 7.3 or later versions of the Linux operating system.
    • For ARM architecture, it is recommended to use CentOS 7.6 1810 version of the Linux operating system.
| username: 孤君888 | Original post link

CPU architecture monitoring error, what machine are you using? What system? Check the official documentation to see if it is supported.

| username: redgame | Original post link

Try running it on the other two machines.

| username: Anna | Original post link

Have the hosts been changed?

| username: Anna | Original post link

Refer to this: TiDB 环境与系统配置检查 | PingCAP 文档中心

| username: TiDBer_TVKpabeM | Original post link

Resolved
