The ribbon-filter-above-level parameter in the documentation was not found

Translated
1

Note:
This topic has been translated from a Chinese forum by GPT and might contain errors.

Original topic: 文档的ribbon-filter-above-level参数没有找到

| username: Ming

【TiDB Usage Environment】Production Environment / Testing / Poc
【TiDB Version】v7.1.0
【Encountered Problem: Problem Phenomenon and Impact】

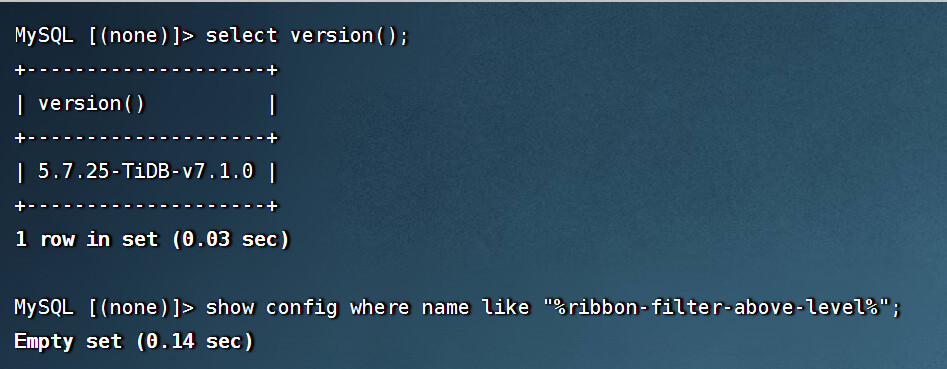

image947×369 94.3 KB

Could you please tell me why I am using version v7.1.0, and I see the description of the ribbon-filter-above-level parameter in the documentation, but I cannot find it when I query the database?

Parameter link: TiKV 配置文件描述 | PingCAP 文档中心

2
| username: Billmay表妹 | Original post link

Let me ask the teacher~
I will reply to you if there are any updates~

3
| username: 我是咖啡哥 | Original post link

My environment was upgraded from v6.5, and I can’t find this parameter.

mysql> show config where name like '%ribbon%';
Empty set (0.02 sec)

mysql> select tidb_version();
+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| tidb_version()                                                                                                                                                                                                                                                                               |
+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Release Version: v7.1.0
Edition: Community
Git Commit Hash: 635a4362235e8a3c0043542e629532e3c7bb2756
Git Branch: heads/refs/tags/v7.1.0
UTC Build Time: 2023-05-30 10:58:57
GoVersion: go1.20.3
Race Enabled: false
TiKV Min Version: 6.2.0-alpha
Check Table Before Drop: false
Store: tikv |
+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
1 row in set (0.00 sec)
4
| username: zhanggame1 | Original post link

The documentation says “This configuration item only takes effect when format-version >= 5.” I checked and it’s all 2, so it should not be effective.

5
| username: Anna | Original post link

Mine doesn’t have it either…

6
| username: Billmay表妹 | Original post link

The related update issues are as follows:

master (corresponding to the future v7.2 documentation branch):

Chinese: v7.2: Update the support info of optimize-filters-for-memory by qiancai · Pull Request #14274 · pingcap/docs-cn · GitHub

English: v7.2: Update the support info of optimize-filters-for-memory by qiancai · Pull Request #13930 · pingcap/docs · GitHub

v7.1:

Chinese:

English:

v7.2 release notes:

Thanks for the feedback~
