Using Dumpling for Backup Causes TiDB OOM

Translated
1

Note:
This topic has been translated from a Chinese forum by GPT and might contain errors.

Original topic: 使用dumpling备份造成tidb OOM

| username: TiDB_C罗

[TiDB Usage Environment] Production Environment / Testing / Poc
[TiDB Version]
[Reproduction Path] What operations were performed to cause the issue
[Encountered Issue: Problem Phenomenon and Impact]
[Resource Configuration] Enter TiDB Dashboard - Cluster Info - Hosts and take a screenshot of this page
The dumpling command, whether specifying tidb_mem_quota_query or not, results in the same outcome. Why is tidb_mem_quota_query not taking effect?

tiup dumpling -u root -P 4000 -h xxxx -p 'xxxxxxx' --filetype sql -o /data/export -F 500MiB -t 1 --params "tidb_distsql_scan_concurrency=1,tidb_mem_quota_query=209715200" --consistency=auto

Error message

[mysql] 2024/03/05 13:36:59 packets.go:122: closing bad idle connection: EOF
[2024/03/05 13:36:59.640 +00:00] [INFO] [collector.go:224] ["units canceled"] [cancel-unit=0]
[2024/03/05 13:36:59.668 +00:00] [INFO] [collector.go:225] ["backup failed summary"] [total-ranges=1] [ranges-succeed=0] [ranges-failed=1] [unit-name="dump table data"] [error="invalid connection; sql: START TRANSACTION: sql: connection is already closed; dial tcp xxx.xxx.xxx.xxx:4000: connect: connection refused"] [errorVerbose="the following errors occurred:\n -  invalid connection\n    github.com/pingcap/errors.AddStack\n    \tgithub.com/pingcap/errors@v0.11.5-0.20221009092201-b66cddb77c32/errors.go:174\n    github.com/pingcap/errors.Trace\n    \tgithub.com/pingcap/errors@v0.11.5-0.20221009092201-b66cddb77c32/juju_adaptor.go:15\n    github.com/pingcap/tidb/dumpling/export.(*multiQueriesChunkIter).nextRows.func1\n    \tgithub.com/pingcap/tidb/dumpling/export/ir_impl.go:87\n    github.com/pingcap/tidb/dumpling/export.(*multiQueriesChunkIter).nextRows\n    \tgithub.com/pingcap/tidb/dumpling/export/ir_impl.go:105\n    github.com/pingcap/tidb/dumpling/export.(*multiQueriesChunkIter).Next\n    \tgithub.com/pingcap/tidb/dumpling/export/ir_impl.go:153\n    github.com/pingcap/tidb/dumpling/export.WriteInsert\n    \tgithub.com/pingcap/tidb/dumpling/export/writer_util.go:247\n    github.com/pingcap/tidb/dumpling/export.FileFormat.WriteInsert\n    \tgithub.com/pingcap/tidb/dumpling/export/writer_util.go:660\n    github.com/pingcap/tidb/dumpling/export.(*Writer).tryToWriteTableData\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:243\n    github.com/pingcap/tidb/dumpling/export.(*Writer).WriteTableData.func1\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:228\n    github.com/pingcap/tidb/br/pkg/utils.WithRetry\n    \tgithub.com/pingcap/tidb/br/pkg/utils/retry.go:56\n    github.com/pingcap/tidb/dumpling/export.(*Writer).WriteTableData\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:192\n    github.com/pingcap/tidb/dumpling/export.(*Writer).handleTask\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:115\n    github.com/pingcap/tidb/dumpling/export.(*Writer).run\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:93\n    github.com/pingcap/tidb/dumpling/export.(*Dumper).startWriters.func4\n    \tgithub.com/pingcap/tidb/dumpling/export/dump.go:376\n    golang.org/x/sync/errgroup.(*Group).Go.func1\n    \tgolang.org/x/sync@v0.1.0/errgroup/errgroup.go:75\n    runtime.goexit\n    \truntime/asm_amd64.s:1598\n -  sql: connection is already closed\n    sql: START TRANSACTION\n    github.com/pingcap/tidb/dumpling/export.createConnWithConsistency\n    \tgithub.com/pingcap/tidb/dumpling/export/sql.go:922\n    github.com/pingcap/tidb/dumpling/export.(*Dumper).Dump.func4\n    \tgithub.com/pingcap/tidb/dumpling/export/dump.go:234\n    github.com/pingcap/tidb/dumpling/export.(*Dumper).Dump.func5\n    \tgithub.com/pingcap/tidb/dumpling/export/dump.go:255\n    github.com/pingcap/tidb/dumpling/export.(*Writer).WriteTableData.func1\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:204\n    github.com/pingcap/tidb/br/pkg/utils.WithRetry\n    \tgithub.com/pingcap/tidb/br/pkg/utils/retry.go:56\n    github.com/pingcap/tidb/dumpling/export.(*Writer).WriteTableData\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:192\n    github.com/pingcap/tidb/dumpling/export.(*Writer).handleTask\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:115\n    github.com/pingcap/tidb/dumpling/export.(*Writer).run\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:93\n    github.com/pingcap/tidb/dumpling/export.(*Dumper).startWriters.func4\n    \tgithub.com/pingcap/tidb/dumpling/export/dump.go:376\n    golang.org/x/sync/errgroup.(*Group).Go.func1\n    \tgolang.org/x/sync@v0.1.0/errgroup/errgroup.go:75\n    runtime.goexit\n    \truntime/asm_amd64.s:1598\n -  dial tcp xxx.xxx.xxx.xxx:4000: connect: connection refused\n    github.com/pingcap/errors.AddStack\n    \tgithub.com/pingcap/errors@v0.11.5-0.20221009092201-b66cddb77c32/errors.go:174\n    github.com/pingcap/errors.Trace\n    \tgithub.com/pingcap/errors@v0.11.5-0.20221009092201-b66cddb77c32/juju_adaptor.go:15\n    github.com/pingcap/tidb/dumpling/export.createConnWithConsistency\n    \tgithub.com/pingcap/tidb/dumpling/export/sql.go:903\n    github.com/pingcap/tidb/dumpling/export.(*Dumper).Dump.func4\n    \tgithub.com/pingcap/tidb/dumpling/export/dump.go:234\n    github.com/pingcap/tidb/dumpling/export.(*Dumper).Dump.func5\n    \tgithub.com/pingcap/tidb/dumpling/export/dump.go:255\n    github.com/pingcap/tidb/dumpling/export.(*Writer).WriteTableData.func1\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:204\n    github.com/pingcap/tidb/br/pkg/utils.WithRetry\n    \tgithub.com/pingcap/tidb/br/pkg/utils/retry.go:56\n    github.com/pingcap/tidb/dumpling/export.(*Writer).WriteTableData\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:192\n    github.com/pingcap/tidb/dumpling/export.(*Writer).handleTask\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:115\n    github.com/pingcap/tidb/dumpling/export.(*Writer).run\n    \tgithub.com/pingcap/tidb/dumpling/export/writer.go:93\n    github.com/pingcap/tidb/dumpling/export.(*Dumper).startWriters.func4\n    \tgithub.com/pingcap/tidb/dumpling/export/dump.go:376\n    golang.org/x/sync/errgroup.(*Group).Go.func1\n    \tgolang.org/x/sync@v0.1.0/errgroup/errgroup.go:75\n    runtime.goexit\n    \truntime/asm_amd64.s:1598"]
[2024/03/05 13:36:59.708 +00:00] [INFO] [tso_dispatcher.go:214] ["exit tso dispatcher loop"]
[2024/03/05 13:36:59.708 +00:00] [INFO] [tso_dispatcher.go:162] ["exit tso requests cancel loop"]
[2024/03/05 13:36:59.708 +00:00] [INFO] [tso_dispatcher.go:375] ["[tso] stop fetching the pending tso requests due to context canceled"] [dc-location=global]
[2024/03/05 13:36:59.708 +00:00] [INFO] [tso_dispatcher.go:311] ["[tso] exit tso dispatcher"] [dc-location=global]

TiDB OOM

The 10 SQLs with the most memory usage for OOM analysis
SQL 0:
cost_time: 1.9202006489999999s
stats: xxx:448094468304535556
conn_id: 19
user: root
table_ids: [857]
txn_start_ts: 448171830564093953
mem_max: 295620 Bytes (288.7 KB)
sql: SELECT * FROM `xxx`.`xxx` WHERE `_tidb_rowid`>=70610415 and `_tidb_rowid`<70928387 ORDER BY `_tidb_rowid`

The 10 SQLs with the most time usage for OOM analysis
SQL 0:
cost_time: 1.9202006489999999s
stats: xxx:448094468304535556
conn_id: 19
user: root
table_ids: [857]
txn_start_ts: 448171830564093953
mem_max: 295620 Bytes (288.7 KB)
sql: SELECT * FROM `xxx`.`xxx` WHERE `_tidb_rowid`>=70610415 and `_tidb_rowid`<70928387 ORDER BY `_tidb_rowid`

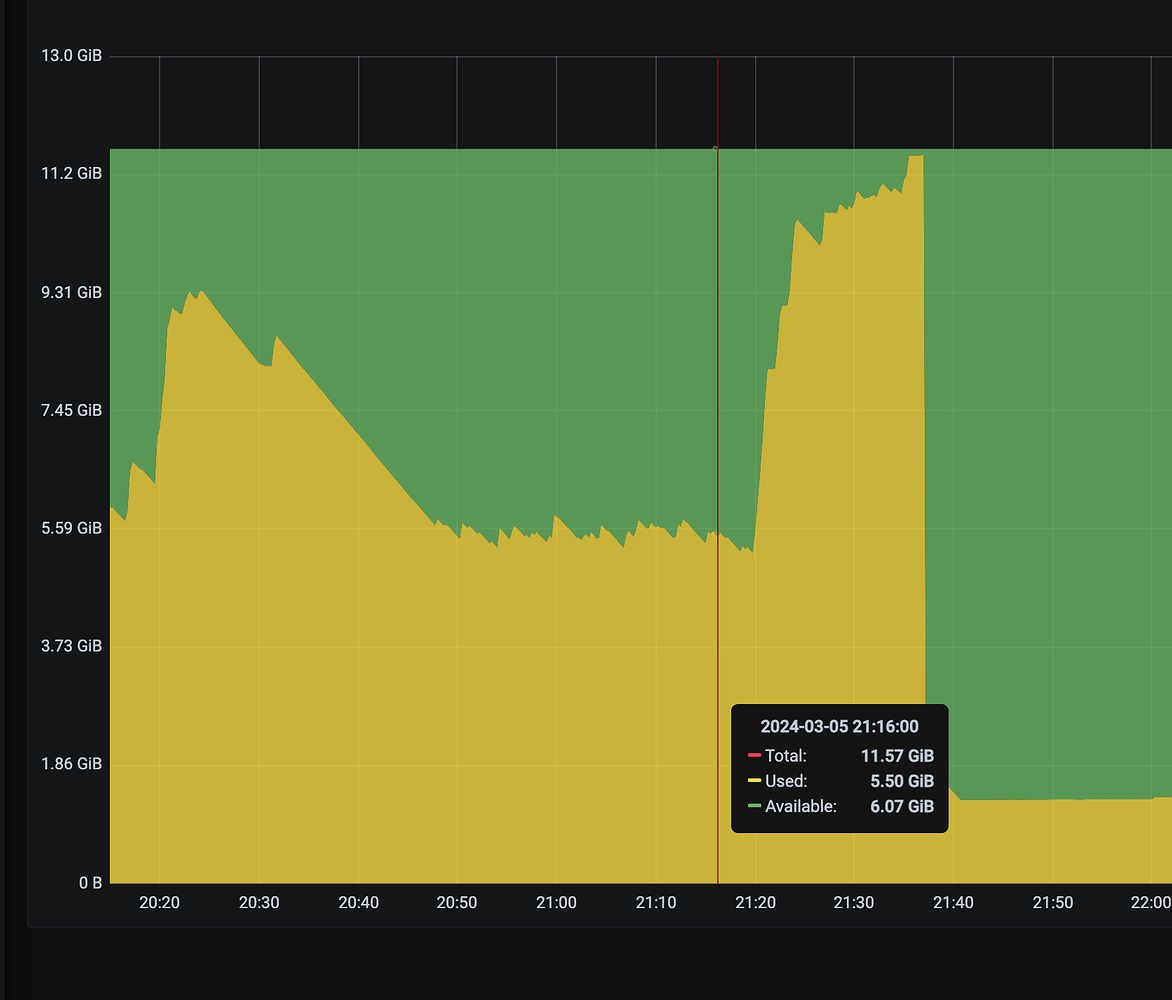

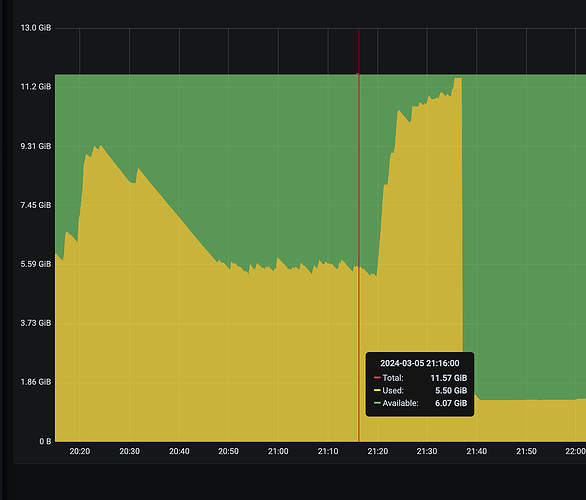

image1172×1000 40 KB

2
| username: 数据源的TiDB学习之路 | Original post link

Two suggestions, you can try to see if they are effective:

  1. Add -r 200000
  2. Change the way the parameters are written, instead of configuring them in param, modify it to: --tidb-mem-quota-query 209715200
3
| username: porpoiselxj | Original post link

Is there any use of tidb_mem_oom_action?

4
| username: TiDB_C罗 | Original post link

I haven’t used this.

5
| username: 江湖故人 | Original post link
  • Setting the -r parameter can partition the exported data blocks to reduce TiDB’s memory overhead for scanning data, and it can also enable intra-table concurrency to improve export efficiency. When the upstream is TiDB and the version is v3.0 or later, setting the -r parameter greater than 0 means using TiDB region information to partition intra-table concurrency, and the specific value does not affect the partitioning algorithm.
  • Reduce the --tidb-mem-quota-query parameter to 8589934592 (8GB) or smaller. This can control the memory usage of a single query statement in TiDB.
  • Adjust the --params "tidb_distsql_scan_concurrency=5" parameter, which sets the session variable tidb_distsql_scan_concurrency during export to reduce the concurrency of TiDB scan operations.
    Using Dumpling to Export Data | PingCAP Documentation Center
6
| username: TiDB_C罗 | Original post link

-r 1000 still doesn’t work, the issue persists. This tool is too unstable.

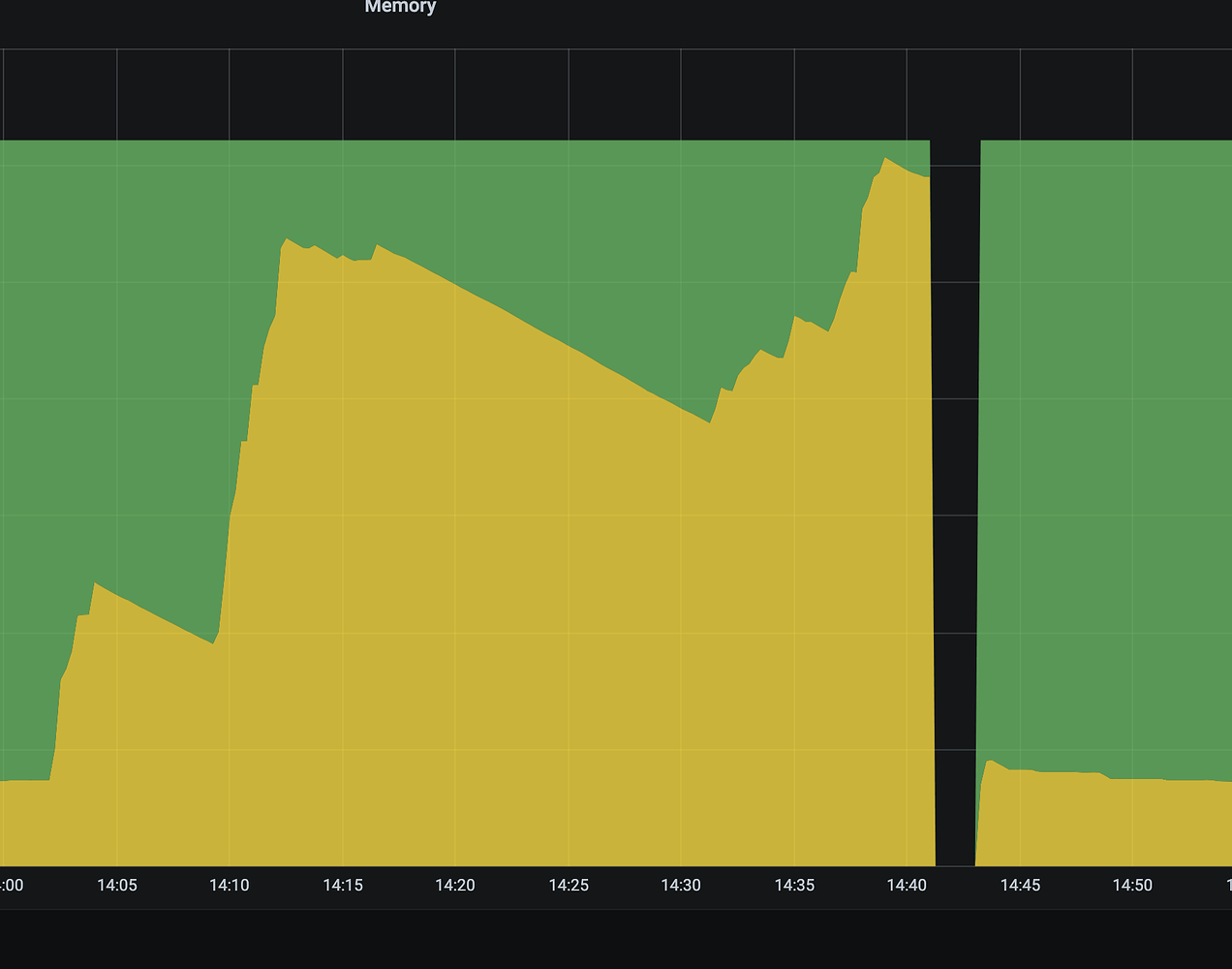

image1272×1000 26.4 KB

7
| username: 路在何chu | Original post link

Then we can only increase the server memory.

8
| username: TiDBer_aaO4sU46 | Original post link

How much actual memory is there?

9
| username: TiDB_C罗 | Original post link

Originally it was 12G. After adding a 16G machine to the cluster, the problem still persisted. Planning to try a 32G machine.

10
| username: 小于同学 | Original post link

Try increasing the memory.

11
| username: zhang_2023 | Original post link

The current backup file size

12
| username: 连连看db | Original post link

You need to set tidb_mem_oom_action in TiDB, otherwise the memory limit will not be effective.

13
| username: TiDB_C罗 | Original post link

Set oom-action, still oom

14
| username: TiDB_C罗 | Original post link

The same command, differences in different versions

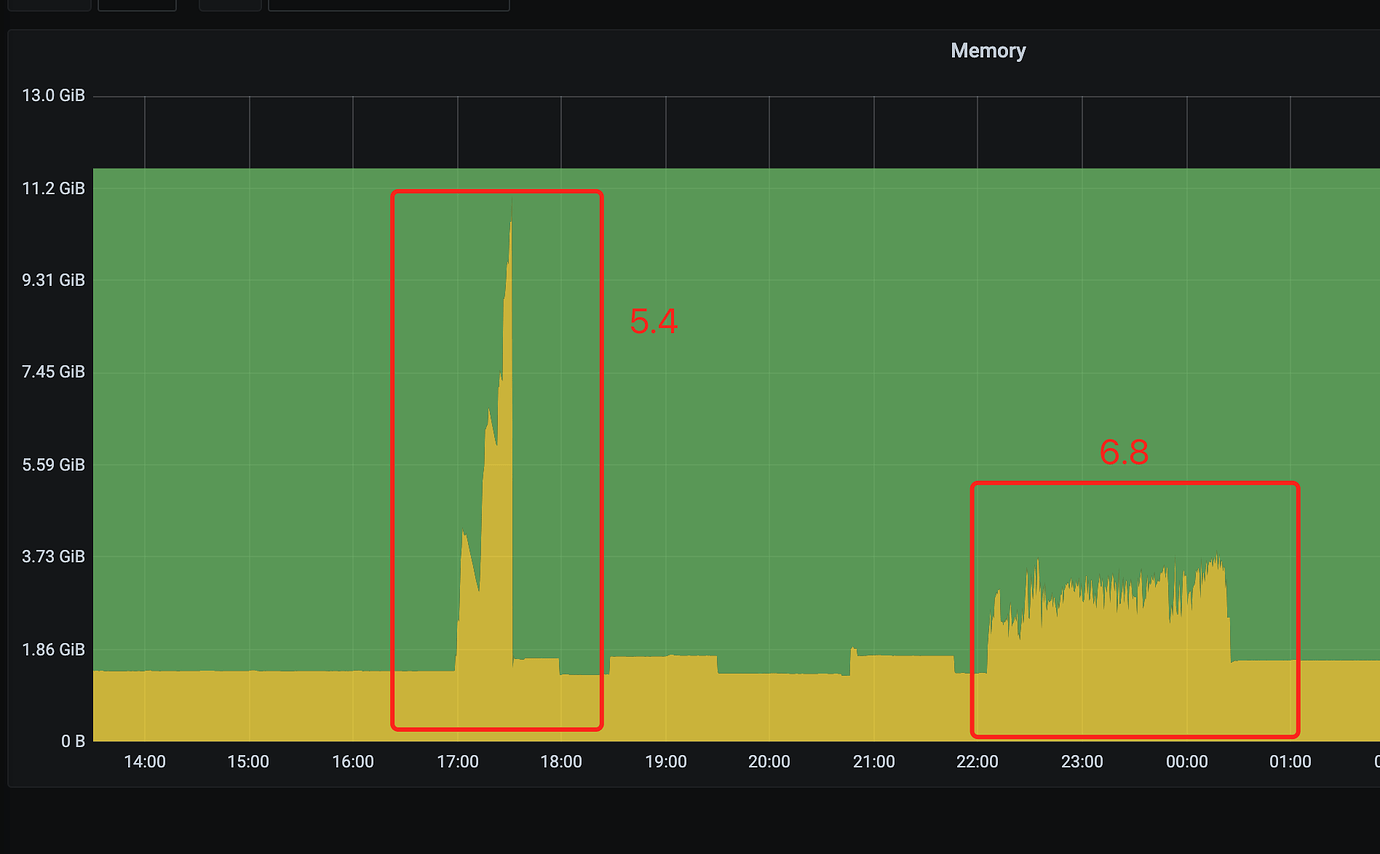

image1380×854 36.3 KB

15
| username: Jolyne | Original post link

It seems that the 5.x series has quite a few OOM issues.

16
| username: 哈喽沃德 | Original post link

Try upgrading to the latest version, there are optimizations, provided you have enough memory.

17
| username: redgame | Original post link

My personal suggestion is to upgrade. Try using 6.5.

18
| username: FutureDB | Original post link

What does the table structure look like? It seems that the amount of data you exported is not much.

19
| username: Kongdom | Original post link

Will it be effective if -r is reduced and -F is also reduced?

20
| username: Kongdom | Original post link

:+1::+1::+1: It seems that the higher version has indeed made significant optimizations.
